Released: March 25, 2025

Survey Now v2.0.2 introduces Survey Creator APIs to change icons for Property Grid categories, clear translations when a source text is changed, and position a property editor within a table editor in Property Grid.

Survey Creator's Property Grid and other UI elements are built upon regular Survey Now surveys and can be customized using the SurveyModel API. To access and customize a SurveyModel instance that underlies a specific UI element, including Property Grid, you can handle the onSurveyInstanceCreated event. Previously, this event didn't allow you to change icons for Property Grid categories in the new icon view, because the categories are in fact survey pages, and they did not support icons. To address this issue, we add a new iconName property to the PageModel object. You can change this property within the onSurveyInstanceCreated event handler if you want to modify a category icon:

import { SvgRegistry } from "survey-core";
import { SurveyCreatorModel } from "survey-creator-core";
const creatorOptions = { ... };
const creator = new SurveyCreatorModel(creatorOptions);

const customIcon = '<svg viewBox="0 0 12 12" xmlns="http://www.w3.org/2000/svg"><path d="..."/></svg>';
SvgRegistry.registerIcon("icon-custom", customIcon);

creator.onSurveyInstanceCreated.add((_, options) => {
  if (options.area === "property-grid") {
    const choicesCategory = options.survey.getPageByName("choices");
    if (choicesCategory) {
      choicesCategory.iconName = "icon-custom";
    }
  }
})

Survey Creator v2.0.2 adds a new property, clearTranslationsOnSourceTextChange, that specifies whether to delete translations to other languages when a source language translation is changed. This property may be useful, for instance, if you localize strings in a batch using a machine translation service and need to know which strings to update. The following code shows how to enable the new property:

import { SurveyCreatorModel } from "survey-creator-core";
const creatorOptions = {
  // Specify the property before instantiation
  clearTranslationsOnSourceTextChange: true
};
const creator = new SurveyCreatorModel(creatorOptions);

// Change the property at runtime
creator.clearTranslationsOnSourceTextChange = false;

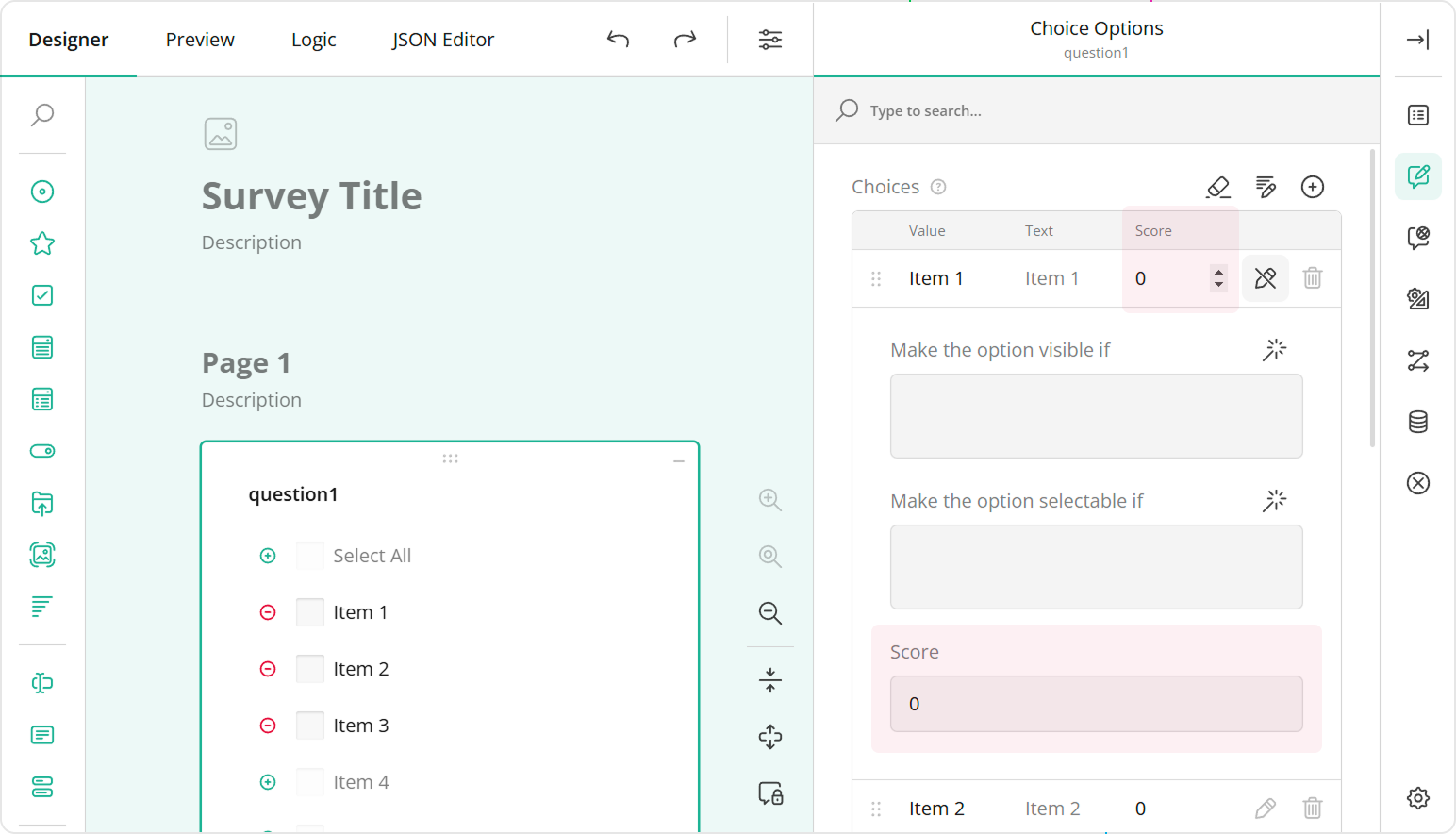

Table editors are used to edit choices, rows, columns, and other collections. Collection items are represented by such classes as itemvalue, matrixdropdowncolumn, and others. Previously, when you added a custom property to those classes, its editors were displayed in a custom table column. Since this release, you can move the editors to a detail section or display them in a column and in the detail section, as shown below:

View Documentation

Survey Creator: Enable Ace Editor in the JSON Editor Tab | Angular

Survey Creator: Enable Ace Editor in the JSON Editor Tab | Vue

Survey Creator: Enable Ace Editor in the JSON Editor Tab | React

Survey Creator: Enable Ace Editor in the JSON Editor Tab | HTML/CSS/JavaScript

Form Library

• Rating Scale in dropdown mode: The min and max labels are hidden if rate value aren't auto-generated (#9629)
• The onTextMarkdown event doesn't provide access to a choice item for which the event is raised (#9601)
• SurveyModel's isLastPage() method returns true even when the current page is not last in question-per-page mode (#9617)
• Entering an already present choice option into the Other comment box saves an incorrect result if storeOthersAsComment is false (#9619)
• displayValue() function copies the Other item's label instead of its value when specified inside a Dynamic Panel (#9635)

Survey Creator

• Property Grid Choices editor: The Fast Entry button remains disabled even if choices do not contain any settings other than value and text (#6751)
• Property Grid Choices editor: A exception is raised when processing choices using an onFastEntryFinished event handler (#6753)

Dashboard

• Table View freezes if you try to select 25 rows per page or more (#521)
• Visualization panel flickers when the updateData() method is called (#522)

npm i [email protected] [email protected] --save
npm i [email protected] [email protected] --save
npm i [email protected] --save
npm i [email protected] --save

npm i [email protected] [email protected] --save
npm i [email protected] [email protected] --save
npm i [email protected] --save
npm i [email protected] --save

npm i [email protected] [email protected] --save
npm i [email protected] [email protected] --save
npm i [email protected] --save
npm i [email protected] --save

<link href="https://unpkg.com/[email protected]/survey-core.min.css" type="text/css" rel="stylesheet">
<script type="text/javascript" src="https://unpkg.com/[email protected]/survey.core.min.js"></script>
<script type="text/javascript" src="https://unpkg.com/[email protected]/survey-js-ui.min.js"></script>

<script src="https://unpkg.com/[email protected]/themes/index.min.js"></script>
<script src="https://unpkg.com/[email protected]/themes/index.min.js"></script>

<link href="https://unpkg.com/[email protected]/survey-creator-core.min.css" type="text/css" rel="stylesheet">
<script src="https://unpkg.com/[email protected]/survey-creator-core.min.js"></script>
<script src="https://unpkg.com/[email protected]/survey-creator-js.min.js"></script>

<link href="https://unpkg.com/[email protected]/survey.analytics.min.css" rel="stylesheet">
<script src="https://unpkg.com/[email protected]/survey.analytics.min.js"></script>

<script src="https://unpkg.com/[email protected]/survey.pdf.min.js"></script>
